MORY INDUSTRIES INC.

Flat bars

Flat bars SUS304

(Unit:mm)
Flat bars SUS304

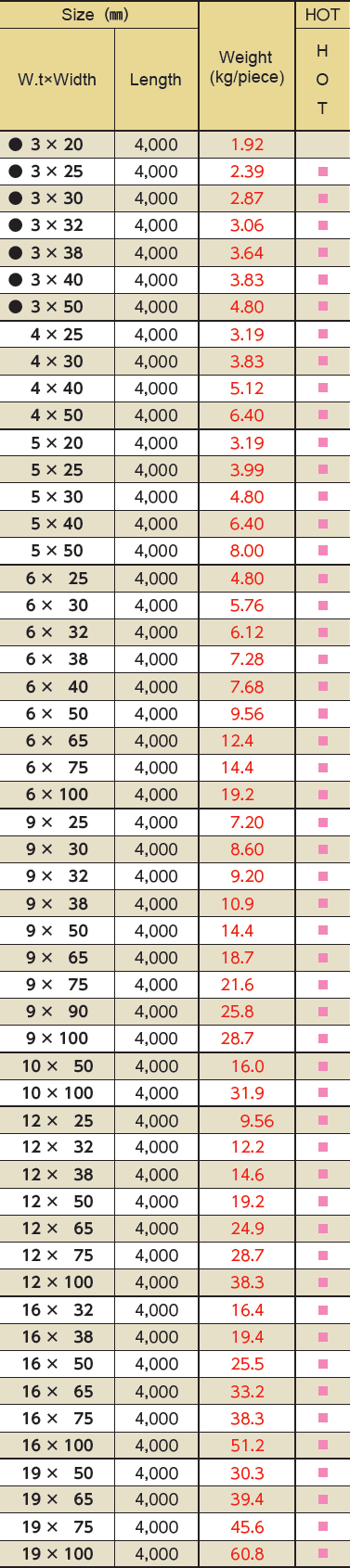

Flat bars SUS316 / 316L

(Unit:mm)
Flat bars SUS316 / 316L
  • ●：As soon as the manufacturer discontinues production and inventory runs out, sales will end.

  • Cold-Rolled Flat Bars

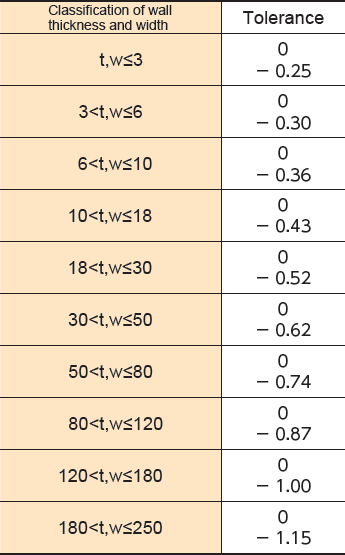

    Tolerance on thickness and width

    (Unit:mm)
    Cold-Rolled Flat Bars

  • Hot-Rolled Flat Bars

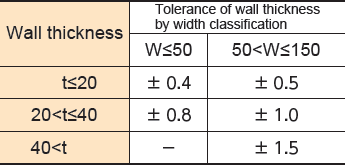

    Tolerance on thickness

    (Unit:mm)
    Hot-Rolled Flat Bars

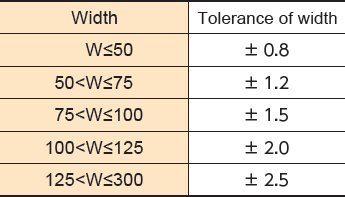

    Tolerance on width

    (Unit:mm)
    Hot-Rolled Flat Bars

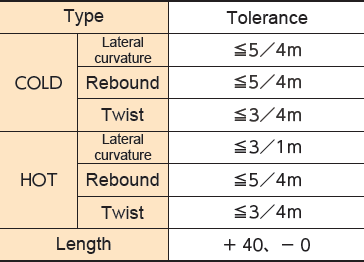

  • Shape Tolerance of Flat Bars

    (Unit:mm)
    Shape Tolerance of Flat Bars

Examples

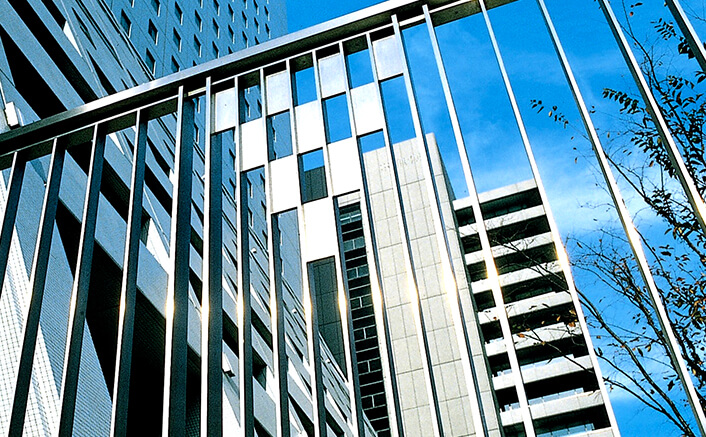

  • Fencing
    Fencing

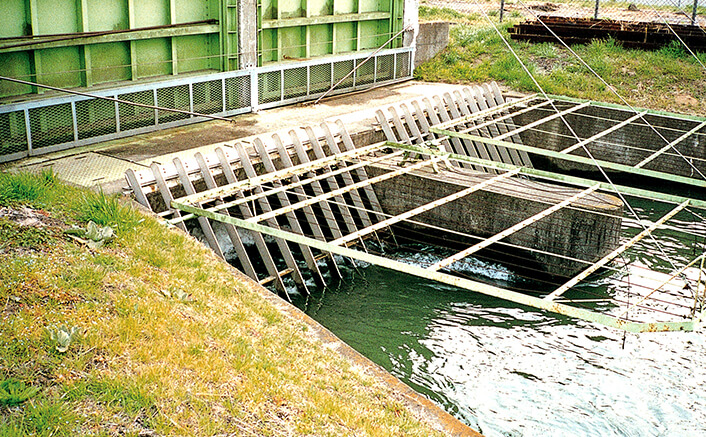

  • Screen panel of rainwater road
    Screen Panel of Rainwater Road
