Hexagonal bars

Hexagonal bars (Cold-drawn) SUS304

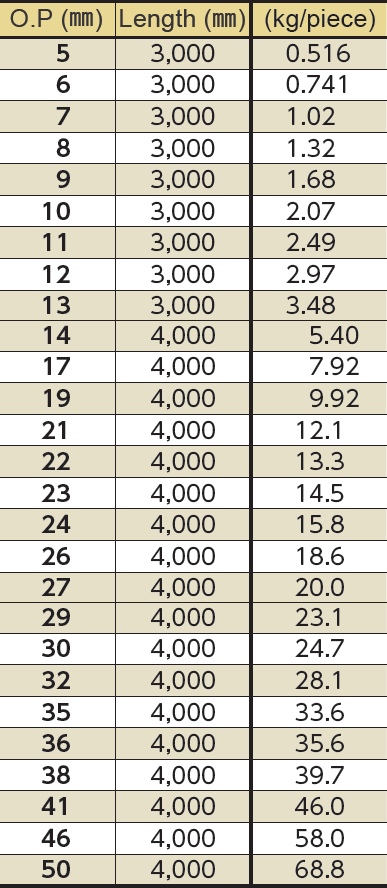

Hexagonal bars (Cold-drawn) SUS304 — (Unit:mm)

Hexagonal bars (Cold-drawn) SUS303

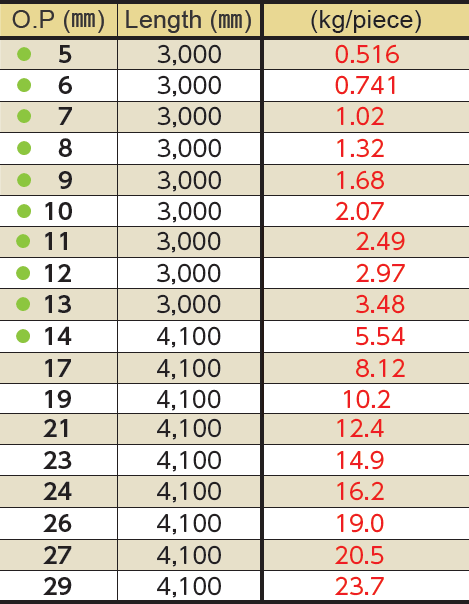

Hexagonal bars (Cold-drawn) SUS303 — (Unit:mm)

●：The material of the bars that these signs are put is SUS303Cu.

Dimensional Tolerance

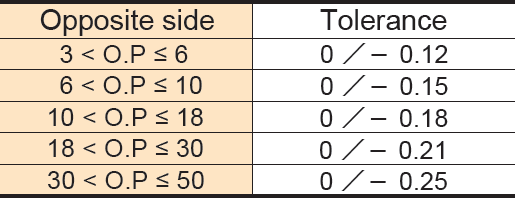

Dimensional Tolerance — (Unit:mm)

- Surface finish, all dimensions skin pass finish

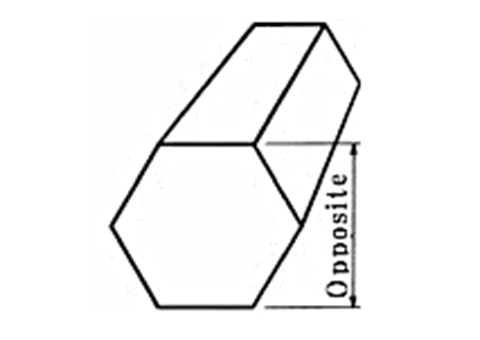

Dimensional drawing
