Welded carbon steel square pipes for general structural purposes
It is used for the structure of buildings, logistics pallets, fences, civil engineering works and so on.
| JIS No. | JIS G 3466 |
|---|---|
| Grade | STKR 400 |
| Use | Building materials, building structures, distribution pallets, etc. |

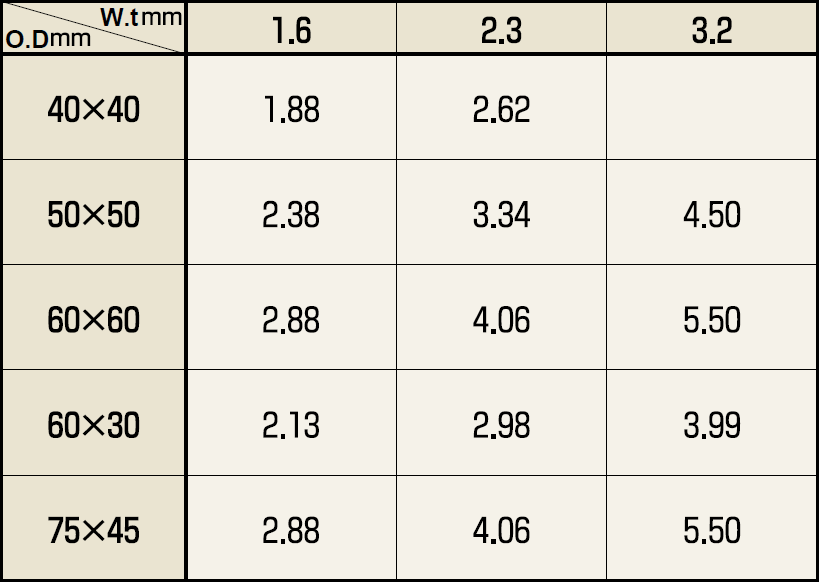

Standard Sizes and Unit Weights
- - The standard length is 6m, but respond to consultation until 8.6m.
- - Please inquire about any size not listed.

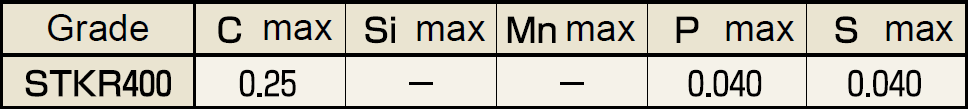

Chemical Components

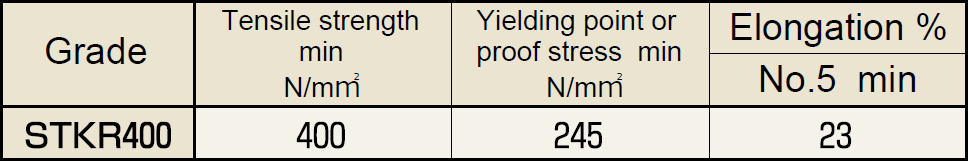

Mechanical Properties

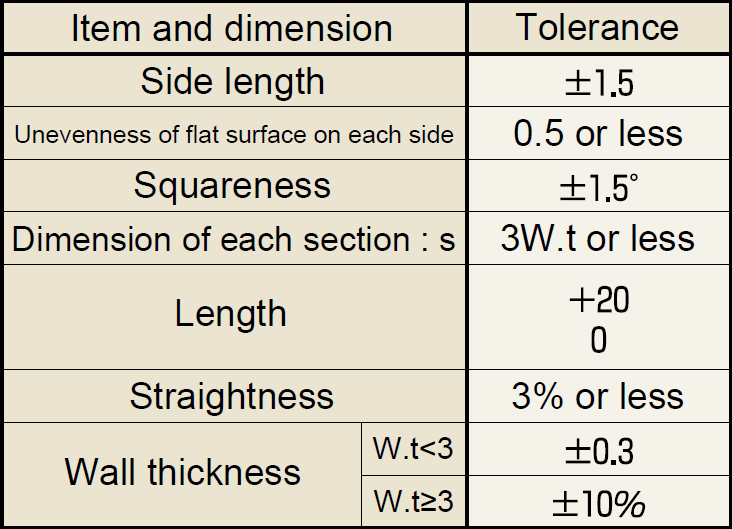

Dimensional Tolerance
- - Flat surfaces are indicated by the shaded areas in the figure below.
- - The straightness tolerance applies to major bends up and down and to the right and left.
- - The thickness tolerance applies to flat surfaces.
Examples
-
Pallets
